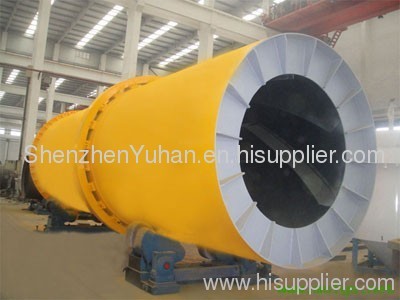

2013 Manufacturing High Efficiency Cheap Small sand dryer /rotary dryer

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RDSZ-600

Production Capacity: 200SetS/per month

Delivery Date: 15-20days

Type: Others

Gradient: 3-5 (%)

Inlet air temperature: ≤700 (℃)

Capacity: 0.5-1.5 (t/h)

Means of Transport: Ocean,Land,

Packing: Normal Paking

Application: Ore

Brand Name: RP

Rotation speed: 3-8 (r/min)

Power: 3 (kw)

Weight: 2.9 (t)

sand dryer features:
1.easy operation
2.less flow resistance
3.larger fluctuation range
4.low energy consumption

2013 Sand Dryer / Rotary Dryer Machinery

1. Work principle
Drum dryer drum is slightly inclined and able to turn the cylinder body into the wet material from the upper end of the dry material collected from the other side of the lower part. Hot air from the feed side or discharge side access, from the other side of the upper discharge.
Cylinder equipped with a copy along to the board, so that the material in the process of continually took a rotating cylinder has shed its full engagement with the hot air to improve the drying efficiency and enable material to move forward.

2. feeatures
stable, reliable, no wearing parts, less trouble, long life industry has been widely used in the dryer.

3. the scope
1, from the raw material form, the centrifuge cake, filter press cake; free flow of powder, granules, flakes, fibers and other materials dry.
2, from a range of application materials are widely used in mineral products, building materials, chemical products, fertilizer, organic powder, fodder, wine tank, starch residue, corn residue, residue and other dry

Technical Parameters

Model (mm)	Gradient (%)	Rotation speed (r/min)	Inlet air temperature (°C)	Power (kw)	Capacity (t/h)	Weight (t)	Remark
RDSZ-600	3-5	3-8	≤700	3	0.5-1.5	2.9	Note: The capacity has much to do with the heating mode for the dryer.
RDSZ-800	3-5	3-8	≤700	4	1.5-3.0	3.5
RDSZ-1000	3-5	3-8	≤700	5.5	3.0-6.5	5.6
RDSZ-1200	3-5	3-8	≤700	7.5	6.5-9.5	12
RDSZ-1500	3-5	2-6	≤850	15	9.5-15	17.2
RDSZ-1800	3-5	2-6	≤850	18.5	15-22	25
RDSZ-2000	3-5	1.5-6	≤850	18.5	22-26	36
RDSZ-2200	3-5	1.5-6	≤850	22	26-30	45
RDSZ-2400	3-5	1.5-5	≤850	37	30-36	55
RDSZ-2600	3-5	1.5-5	≤850	45	36-42	65
RDSZ-2800	3-5	1.5-5	≤850	55	42-48	70
RDSZ-3000	3-5	1.5-5	≤850	75	48-55	82.8
RDSZ-3200	3-5	1.5-5	≤850	90	55-75	98
RDSZ-3400	3-5	1.5-5	≤850	110	75-85	135
RDSZ-3600	3-5	1.5-5	≤850	160	85-105	145

Model (mm)	Gradient (%)	Rotation speed (r/min)	Inlet air temperature (°C)	Power (kw)	Capacity (t/h)	Weight (t)	Remark
YXSZ-600	3-5	3-8	≤700	3	0.5-1.5	2.9	Note: The capacity has much to do with the heating mode for the dryer.
YXSZ-800	3-5	3-8	≤700	4	0.8-2.5	3.5
YXSZ-1000	3-5	3-8	≤700	5.5	2.0-4.5	5.6
YXSZ-1200	3-5	3-8	≤700	7.5	4-8	14
YXSZ-1500	3-5	2-6	≤800	15	8-15	17.8
YXSZ-1800	3-5	2-6	≤800	18.5	10-18	25
YXSZ-2000	3-5	1.5-6	≤800	18.5	15-22	36
YXSZ-2200	3-5	1.5-6	≤800	22	18-25	53.8
YXSZ-2400	3-5	1.5-5	≤800	37	22-35	62
YXSZ-3000	3-5	1.5-5	≤800	75	32-45	87.5
