China leading 2013 New Arrival--Spring Cone Crusher/high efficiency spring cone crusher PYB900 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

China leading 2013 New Arrival--Spring Cone Crusher/high efficiency spring cone crusher

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PYB900

Production Capacity: 200 sets/month

Delivery Date: 20 days

Type: Crusher

Diameter: 900(mm)

Capacity: 50-90(t/h)

Speed of eccentric shaft: 333 (r/min)

Overall dimension(l*w*h): 3050*1640*2350 (mm)

Means of Transport: Ocean,Land,Air,

Packing: normal packing

Application: Coal

Brand Name: RP

Max. feed size: 115(mm)

Power: 55(KW)

Weight: 10.2 (t)

Discharge size: 12-25(mm)

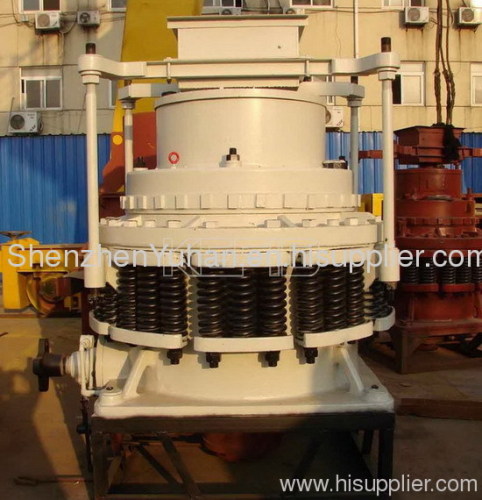

Spring Cone Crusher
1)Best after-sales service
2)High reliability in crushing
3)Stable performance
4)Easy to operate

CE China leading 2013 New Arrival -- high efficiency spring cone crusher for sale

Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compare with jaw crusher, cone crusher is of stable structure, high efficiency, easy adjustment, economic operation, etc. The spring safety system of crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separate to make sure reliable performance. The type of crushing chamber depends upon size of feeding and fineness of crushed product. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

Working Principle of Cone Crusher:

Cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency efficient than jaw crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the movable cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined adjusted.
