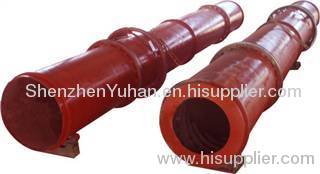

China professional three cylinder rotary dryers / sand drying machine

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HG1212.00

Production Capacity: 200SetS/per month

Delivery Date: 15-20days

Type: Vacuum Drying Equipment

Diameter: 1200 (mm)

angle of inclination: 5 (%)

Power: 11 (kw)

Means of Transport: Ocean,Land,

Packing: Normal Paking

Application: Ore

Brand Name: RP

Length: 12000 (mm)

rotate speed: 5.99 (r/min)

Weight: 15756 (kg)

rotary dryer
1. high a thermal efficiency
2.remarkable energy saving
3.little engineering investment
4.little thermal loss

Three Cylinder Dryer

1. Structural features of three cylinder dryer

The thermal efficiency of double-canister is high, and energy-saving effect is obvious. Thermal efficiency exceeds 50% of traditional single canister dryer via test, coal saving is obvious after using it.

The principle of dryer is scientific, rational, high efficient and energy-saving. The thermal exchange of material in the form of thermal current radiation, convection and conduct in inner canister, while in outer canister, the thermal exchange in the form of conduct and convection.

The length is less than before, which is good for technical layout, the entire length is shorter than single-canister dryer about 50%, so which retrench the workshop floor area and project investment, and is more applicable for technical transformation of old workshop.

The equipment adopts downstream drying technology of material and thermal air current, has wide applicable scope, which is useful for drying of clay, coal, slag and iron powder and kinds of raw material, also for bulk material in chemical industry and metallurgy industry and etc.

Its entire structure is compact and horizontal layout, and adopts supporting wheel transmission instead of big and small gear transmission, which is convenient for installation, simple for operation, reliable for running and has higher running rate.

Its outer surface area is smaller than single-canister rotating dryer about 50%, and the outer canister can keep thermal insulation for inner canister, the temperature of outer canister is low and the thermal loss is small, the working environment and condition is improved while it saves energy.

Kinds of tossing plate and the combining of angle and gammadia tossing plate make the exchange of material and heat gas more fully, so reduce the generation of wind tunnel in canister of dryer.

2. Specifications

Model	Size of cylinder			rotate speed (r/min)	Power (kw)	Weight (kg)
Model	Diameter(mm)	Length(mm)	angle of inclination(%)	rotate speed (r/min)	Power (kw)	Weight (kg)
HG1012.00	1000	12000	5	6.2	7.5	13236
HG1212.00	1200	12000	5	5.99	11	15756
HG1512.00	1500	12000	5	4.02	15	17430
HG1814.00	1800	14000	5	4.59	18.5	27263
HG2014.00	2000	14000	5	4.59	18.5	31688
HG2214.00	2200	14000	5	4.59	22	37431
HG2414.00	2400	14000	5	3.6	30	46197
HG2818.00	2800	18000	5	3.12	45	89332
HG3020.00	3000	20000	5	3.67	55	95505
HG3222.00	3200	22000	5	3.4	75	141627
HG3624.00	3600	24000	5	3.1	110	188627
JHG1214.00	1200	14000	5	5.99	11	17382
JHG1816.00	1800	16000	5	5.48	22	39587
JHG2016.00	2000	16000	5	4.59	30	61912
JHG2227.00	2200	27000	5	4.58	37	79263
JHG2418.00	2400	18000	5	3.12	37	66735
