Crawler Type Mobile Crusher Plant with high performance GZD-960X3800 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

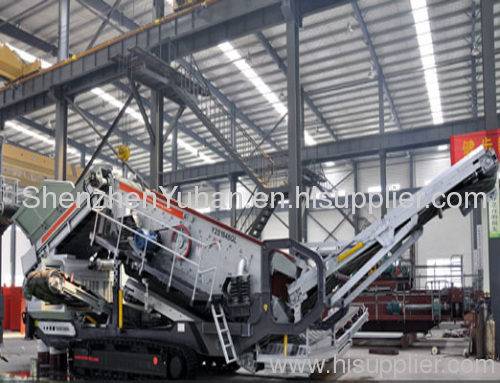

Crawler Type Mobile Crusher Plant with high performance

Price:	1000.0~10000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GZD-960X3800

Production Capacity: 200 sets/month

Delivery Date: 20 days

Type: Crusher

Jaw Crusher: PE600X900

Main Belt Discharge Height: 2700 (mm)

Side Belt Discharge Height: 2700 (mm)

Transportation Length: 13000 (mm)

Transportation Height: 3050 (mm)

Means of Transport: Ocean,Land;O/A

Packing: normal packing

Application: Coal

Brand Name: RP

Main Belt Width: 800 (mm)

Side Belt Width: 500 (mm)

Power: 150 (KW)

Transportation Width: 3050 (mm)

Transporation Weight: 39 (T)

crawler mobile crusher plants
1.Include crawler type
2.mobile jaw crusher
3.mobile impact crusher
4.mobile cone crusher

Crawler Type Mobile Crusher, Crawler Type Mobile Crusher products, Crawler type mobile crusher,track mounted crusher plants,Europe crusher plants.

1. Perfect performance of Cummins diesel engine. It is low consumption, low noise, reliable performace.

And we can equip a military cryogenic preheat starting device, so that the crushing plant can be started to work even

the temperature is bleow 25 degrees centigrade.

2. The chassis adopts crawler rigid ship form structure. It is of high intensity,

easy to be transported on the different landform like mountain and marsh.

3. It adopts the motor of high-torque and strong driving force. Crawing system adopts full-power variable open hydraulic system which is of excellent performance, high reliability. It is able to make full use of engine power.

The main hydraulic components (pumps, valves, etc.) is imported from Japan.

4. Controlling system adopts imported and advanced servo system. It is easy and exact to be controlled to stepless crawl.

5. The crushing & screening plant adopts our company's advanced product. Its structure is compact.

The screen is installed in 20 degree angle, so the screening is highly efficient.

Technical Data:

Mobile Jaw Crusher Crushing Plant

Vibrating Feeder	GZD-960X3800	GZD-960X3800	GZD-960X3800
Jaw Crusher	PE600X900	PE750X1060	PE500X750
Main Belt Width (mm)	800	1000	650
Main Belt Discharge Height (mm)	2700	2800	2700
Side Belt Width (mm)	500	650	500
Side Belt Discharge Height (mm)	2700	2900	2700
Power (KW)	150	220	150
Transportation Length (mm)	13000	14000	12500
Transportation Width (mm)	3050	3180	3050
Transportation Height (mm)	3500	4300	3400
Transporation Weight (T)	39	54	33
