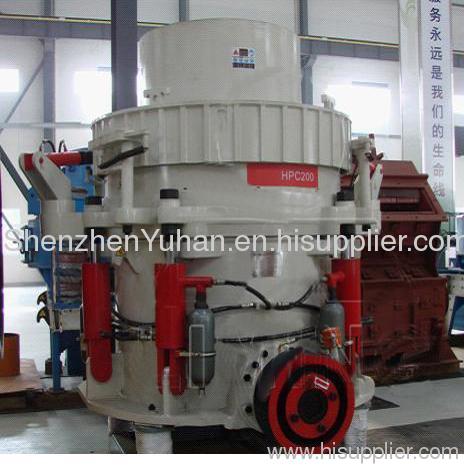

1. Brief introduction of Single Cylinder Hydraulic Cone Crusher
Single Cylinder Hydraulic Cone Crusher adopts the best combination of crushing frequency and eccentricity, so size of the crushed product is much smaller. Therefore, more crushing and less grinding efficiency is more significant, crushing and grinding power consumption is reduced greatly. Perfect combination of high crushing efficiency and highly efficient chamber makes larger capacity than other crushers. More materials are crushed by different layers, so size of final product is evenly cubic. Hydraulic adjustment and method for cleaning chamber make operation and maintenance much more convenient and automatic. This series of Single Cylinder Hydraulic Cone Crusher has much less trouble, and operating ratio is increased more than 85%, so the whole cost is reduced greatly.

2. Working principle of Single Cylinder Hydraulic Cone Crusher
Crushing process is completed between the fixed cone and eccentric rotating moving cone. Horizontal axis of crusher is driven by motor through the V-belt, and drives eccentric cover by gear. Eccentric cover makes main shaft rotate to cause eccentricity. Materials enter crushing chamber through upper inlet of crusher, and are discharged out through lower outlet.

1).Human design and hydraulic adjustment of discharge outlet save time and work.Adjustment can be controlled precisely.

2).Single hydraulic system adjusts main shaft and body,the body can rise and decline integrally to adjust discharge size,so side cylinder and upper frame with slope can be avoided.

3).Working pressure system can be adjusted hydraulically,pressure adjusting system can discharge super hard materials to protect the machine.

4).Spare parts can be changed easily.Fixed cone and cone body combine stably after precise design,and filler is not necessary to be filled again,so time to change spare parts can be saved.

5).Hydraulic pressure of the whole machine is so low that it gives lower pressure to the main frame,and hydraulic system lasts longer.

6).The machine is designed with small size,so installation and transportation are very convenient.
