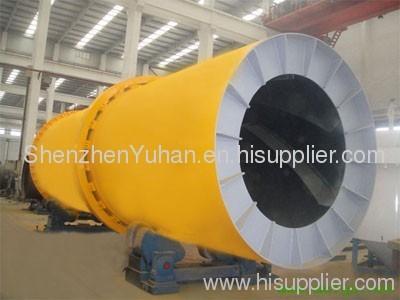

China 2012 hot selling rotary dryer used in construction, metallurgy and chemistry

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 0.8x10

Delivery Date: 15-20days

Type: Vacuum Drying Equipment

Power: 6-4 (KW)

rotary speed: 7.2 (r/m)

Weight: 6.9 (t)

Packing: Normal Paking

Application: Ore

Brand Name: RP

shell diameter: 800 (mm)

Shell length: 10000 (mm)

Rotary Dryer
1. free installation
2. lower in erengy consumption
3. high temperature resistant
4. high capacity

Hot Selling Rotary Dryer

Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated.

1. Brief introduction of Rotary Dryer

Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer

can be widely used to dry various materials, and it is simple to be operated.

2. Working principle
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line.

Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together.

Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make

materials and hot air mix completely. So drying efficiency is improved.

3. Technical parameters

Model	shell diameter (mm)	Shell length (mm)	Slope (°)	rotary speed (r/m)	Weight (t)	Power (KW)	Volume (m³)
Φ0.6×8	600	8000	3-5	8	5.1	6-4	2.26
Φ0.8×10	800	10000	3-5	7.2	6.9	6-4	5.02
Φ1.0×10	1000	10000	3-5	6.73	7.5	6-5.5	7.85
Φ1.2×12	1200	12000	3-5	5.8	13.1	6-11	13.31
Φ1.5×12	1500	12000	3-5	4.8	22.3	6-15	21.2
Φ2.2×14	2200	14000	3-5	3.2	52.8	30	53.22
Φ2.4×18	2400	18000	3-5	3	73.3	37	81.43
Φ2.8×24	2800	24000	3-5	2.59	97	75	147.8
