Medium Or Lower Rigidity Double-roll Crusher 2PG-400*250 2PG-400*250 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

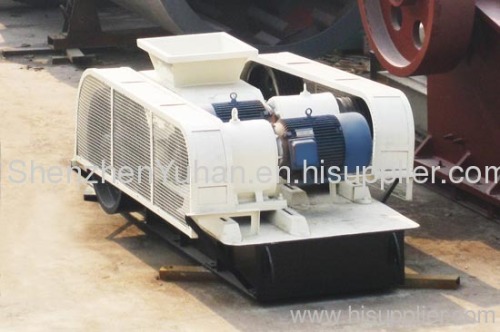

Medium Or Lower Rigidity Double-roll Crusher 2PG-400*250

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2PG-400*250

Production Capacity: 200SETS/PER MONTH

Delivery Date: 15-20days

Type: Crusher

Feeding size: ≤25mm

Output: 5-10ton/hour

Machine weight: 1500kg

Means of Transport: Ocean,Land;O/A

Packing: Normal Paking

Application: Ore

Brand Name: RP

Output size: 1-8mm

Engine power: 11kw

Double-roll crusher
1. There are less over crushed minerals;
2. The shape, size and arrangement of the cogs on the rollers can be adjusted .

Double-roll crusher

Introduction of Double-roll crusher :

The series of 2roller crusher can be applied in industrial sectors such as ore crushing ,chemical industry, cement, refractory, abrasive and construction industries to break ores and stones of high and medium rigidities, and particularly applied in the building material industry to produce pisolitr and pea gravel, which is with better effect than ordinary crushers. This series crusher has good characteristics like reliable working, simple maintenance, low operating cost and adjustable marking granularity.

Advantages of double-roll crusher:

1. There are less over crushed minerals;

2. 2. The shape, size and arrangement of the cogs on the rollers can be adjusted according to the material properties.

3. the machine is used in coal industry, cement industry and silicate industry and also has improvement and development.

Working Principle of double-roll crusher:

Through the feed opening, the raw materials fall to between the two rollers, after crushed, the final products drop naturally. When there are unbreakable materials or too hard material, the roller will concede automatically under the effects of spring and hydraulic pressure, which will widen the clearance between the rollers and make the hard or unbreakable so as to avoid the machine damage. The clearance between the two rollers can be adjusted to change the sizes of final products.

Main Technical Parameters:

Parameters:

Model	Feeding size	Output size	Output	Engine power	Machine weight
2PG-400*250	≤25mm	1-8mm	5-10ton/hour	11kw	1500kg
2PG-610*400	≤40mm	1-20mm	13-35ton/hour	30kw	4500kg
2PG-750*500	≤40mm	2-20mm	15-40ton/hour	37kw	12250kg
2PG-900*500	≤40mm	3-40mm	20-25ton/hour	44kw	14000kg
