High Capacity sand vibrating screen for 2013 hot selling YK1236 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

High Capacity sand vibrating screen for 2013 hot selling

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YK1236

Packing: normal packing

Application: Ore

Brand Name: RP

Layer: 1

Meshsize: 3-100 (mm)

Capacity: 20-150 (t/h)

Sieve size: 1180*3550

Means of Transport: Ocean,Land

Delivery Date: 20days

Type: Crusher

Model: YK1236

Sievearea: 4.3 (m2)

Max feed size: 300 (mm)

Power: 5.5 (kw)

sand vibrating screen
1.CE&ISO certificate
2.high screening efficiency
3.cold bending,high-strength bolt
4.durable

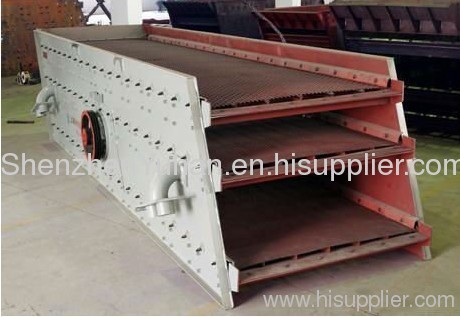

High Capacity sand vibrating screen for 2013 hot selling

Application of sand vibrating screen

Circular Vibrating Screen earns this name by reason of its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.

Working Principle of sand vibrating screen

It uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. It adopts tire clutch with capability of flexible connection and stable operation. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.

Sand vibrating screen main advantages:
1, due to the strong vibration of screen box, plug the sieve to reduce the phenomenon of the material, so that the sieve has a high screening efficiency and productivity.
2, simple structure, convenient removable screen surface.
3, the screening energy consumed per ton less material.

Sand vibrating screen technical parameters:

Type	Screen layers	Screensize(mm)	Feedingsize(mm)	Production capacity(t/h)	Power(kw)	Weight(y)
2YK1235	2	5-120	≤400	60-210	5.5	3600
2YK1545	2	5-150	≤400	110-360	15	6400
3YK1545	3	5-150	≤400	110-360	15	5800
3YK1548	3	5-150	≤400	120-385	15	6600
4YK1548	4	5-150	≤400	120-385	15	7200
2YK1854	2	5-200	≤400	200-450	18.5	8150
3YK1854	3	5-200	≤400	250-600	18.5	8850
4YK1854	4	5-200	≤400	250-600	18.5	9550
3YK1860	3	5-200	≤400	250-600	22	9100
4YK1860	4	5-200	≤400	300-750	22	9800
3YK2060	3	6-200	≤400	300-750	37	10800
4YK2060	4	6-200	≤400	400-850	37	11800
3YK2460	3	6-200	≤400	400-850	45	16600
4YK2160	4	6-200	≤400	400-850	45	17000

Our company can make and design the machine as the need of our consumer.

We(Shenzhen Yuhan Electro-Mechanic Co.,Ltd)are pleased to introduce you ourselves as one of the leading and well established/Manufacturing and Supplying of High Quality Products as below main items:

Stone production line:

Including:

Jaw crusher

Impact crusher

Cone crusher

Hammer crusher

Vibrating screen etc

Sand making production line:

Including:

Jaw crusher

Sand making machine (VSI crusher)

Sand washing machine

We have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
