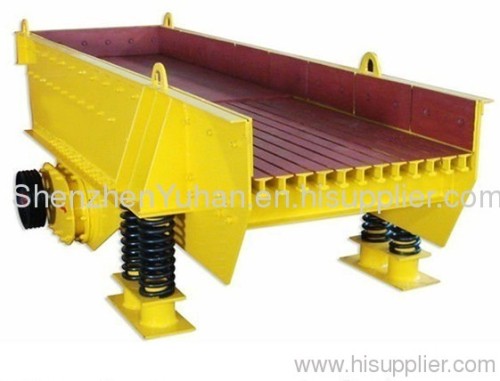

Durable and affordable-- Automatic Vibrating Feeder GZD-180

Price:	8000.0~30000.0 USD
Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GZD-950x3800

Production Capacity: 200SETS/year

Delivery Date: 15-20days

Type: Feeder Machine

Model: GZD-950x3800

Max. feed size: 500 (mm)

Power: 6 (kw)

Overall dimension (L * W * H): 3900*1600*1250 ( mm)

Means of Transport: Ocean,Land

Packing: normal packing

Application: Ore

Brand Name: RP

Funnel size: 950X3800 (mm)

Capacity: 120-210 (t/h)

Weight: 3.98 (t)

Color: As you required

Vibrating Feeder
1.Stable and long service life
2.Easy to adjust
3.Reliable operation
4.Easy maintenance

Durable and affordable -- Vibrating Feeder MACHINE FUNTION

The Vibrating Feeder is a kind of linear direction feeding equipment.It features smooth vibrating,reliable operation,long service life and being suitable for feeding. The vibrating Feeders are widely used in mining ,buiding-material,silicate and chemical industry in the crushing and screening plants.

In the Sand-Stone production line, the vibrating Feeders can send materials to crusher evenly and continuously and at the same time,it can screen materials roughly.It can be used in these areas such as metallurgial industry,coal mining industry,mining-selecting,building ,chemical and grinding industry,etc.

Vibrating Feeder MACHINE FEATURE

1.Stable and long service life.

2.Easy to adjust

3.Reliable operation.

4.Easy maintenance.

5.No pollution with closed body

Vibrating Feeder PRINCIPLES

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The Vibrating Feeder is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

TECHNICAL PARAMETER OF VIBRATING FEEDER

Model	GZD-180	GZD-300	GZD-420	GZD-600
Max. Feed Size(mm)	300	300	580	800
Capacity(t/h)	30-80	40-100	150-350	600-1000
Motor Power(kw)	2x1.5	2x2.2	15	30
Rev.of Motor(rpm)	970	970	970	970
Qty of Motor	2	2	1	1
Installation Slope	0-10	0-10	0	0
Size of Funnel(mm)	1800x800	3000x900	4200x1100	6000x4500
Overall	2200x1100x800	3050x1430x1550	4250x2500x1365	6082x2660x2400
