casting body 2 year warranty china jaw crusher for sale PE150*250 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

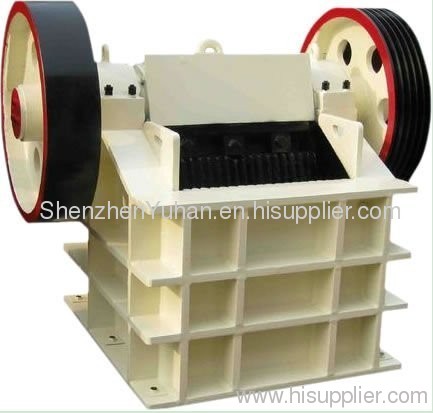

casting body 2 year warranty china jaw crusher for sale

Price:	1039.0~5000.0 USD
Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PE150*250

Packing: normal packing

Application: Ore

Brand Name: RP

Discharge Size: 10-40 (mm)

Overall Dimensions: 896*745*935 (mm)

Means of Transport: Ocean,Land

Delivery Date: 20days

Type: Crusher

Max. Feeding Size: 125 (mm)

Motor Power: 5.5 (kW)

Weight: 0.8 (t)

Jaw crusher direct from state own factory
-ISO, BV, SGS
-Competitive price
-2 year warranty
-China crusher top 50

china jaw crusher for sale / primary stone jaw crusher

Jaw crusher application:

Jaw Crusheris applicable for primary and middle crushing. The technical parameters of biggest materials cannot be more than the technical parameters listed in the table. It is widely used in the departments of mine, smeltery, construction, road, railway, irrigation works and chemical industries, etc. The materials can be various medium hard and hard ore

Structures and working principle:

The structure of jaw crusher contains the frame, eccentric shaft, big belt pulley, flywheel, movable jaw, side guard plate, toggle plate, rear seat of toggle plate, modulation gap screw, returning spring, fixed jaw plate and movable jaw plate, etc, among which the toggle plate is used for safety. The working mode of this series jaw crusher is pressing deviously.

This crushing machine working theory is: The motor drives belt and belt wheel, the eccentric shaft causes the movable jaw to move down and up, forward and backward, the angle between toggle plate and movable jaw becomes bigger when the movable jaw moves up, so that the movable jaw moves toward the fixed jaw, and the materials are pressed, crushed, or cut, as a result, the aim of crushing is accomplished.

Jaw crusher technical parameters:

Technical Data:

Model	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)	Weight (t)
PE150×250	125	10-40	1-3	5.5	896×745×935	0.8
PE250×400	200	20-60	5-20	15	1150×1275×1240	2.8
PE400×600	350	40-100	15-60	30	1700×1732×1653	6.5
PE500×750	425	50-100	50-100	55	2035×1921×2000	10.3
PE600×900	480	65-160	60-130	75	2290×2206×2370	16.5
PE750×1060	630	80-140	80-180	110	2620×2302×3110	29
PE900×1200	750	95-165	140-260	110	3789×2826×3025	54.5
PE1000×1200	850	195-265	315-550	110	3335×3182×3025	57
PE1200×1500	1020	150-300	400-800	160-220	4200×3750×3820	100.9
PEX250×750	210	25-60	10-40	22	1667×1545×1020	5
PEX250×1000	210	25-60	15-50	30	1550×1964×1380	6.5
PEX250×1200	210	25-60	20-60	37	1560×2104×1415	7.7
