More Cavities Ball Mill From Shenzhen,rolling ball mill,chrome iron mill balls 3200x4500 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

More Cavities Ball Mill From Shenzhen,rolling ball mill,chrome iron mill balls

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 3200x4500

Production Capacity: 200sets/per month

Delivery Date: Normal Paking

Type: Others

Speed: 37 (r/min)

Input size: ≤15 (mm)

Capacity: 0.5-2 (t/h)

Output size: 0.075-0.89 (mm)

Means of Transport: Ocean,Land,

Packing: 15-20DAYS

Application: Ore

Brand Name: RP

Max. weight of balls: 1.8 (t)

Power: 15 (KW)

Weight: 4.6 (t)

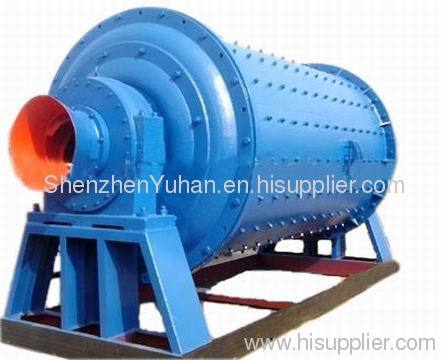

Ball Mill
1.Strong adaptability to raw material
2.Large production capacity,good sealing,
3.Preventing dust outside leakag

Explosion-proof ball mill

Explosion-proof ball mill features:

Explosion-proof ball mill is indispensable ball mill equipment for flammable and explosive substances production. It has characteristics such as strong adaptability to raw material, large production capacity, good sealing, preventing dust outside leakage and can continuous operation, easy to adjust the final fineness and so on.

Explosion-proof ball mill working principle:

High pressure air put the ingredients into the low speed rotating cylinder, the grinding materials and steel ball roll together, and for the material to produce rolling, grinding, the fine powder to a certain degree discharged from the output by wind power, the powder which can not reach the fineness from feed tube flowing back to the inlet hollow shaft into mill for grinding again. Apply to aluminum, magnesium powder, sulfur, and so easy explosive raw material of grinding. Using sealing feeding, compressed air transportation and nitrogen protection,can effectively prevent material accidents in grinding in operation.

Model	BM1.8×3.2	BM2.0×3.4	BM2.1×4.0	BM2.6×2.7	BM2.6×3.2	BM2.6×3.7	BM2.6×4.2	BM2.8×4.5	Bm3.0×5.0	Bm3.2×5.6
Available Dimensions(m3)	Φ1.7×2.9	Φ1.9×3.1	Φ2.0×3.7	Φ2.5×2.25	Φ1.5×2.75	Φ2.5×3.25	Φ2.5×4	Φ2.68×4.25	Φ2.88×4.75	Φ3.08×5.35
Available Volume(m 3 )	6.6	8.8	11	11	13.5	16	19	24.6	31	39.8
Bucket Revolution(r/min)	24.1	22.7	22.3	19.6	19.6	19.6	19.6	19	18.4	17.9
Ball Load(t)	9	12	16	16	19	22	26	32	42	57
Output Capacity(t/h)	15	20	25	30	35	40	45	60	80	100
Size Distribution	Average Size 1mm,and≤0.5mm>70%
Varvel Model	A130	A140	A140	ZSY560	ZSY560A	ZSY560A	ZSY630A	YNS1570	YNS1760	JDX800
Speed Ratio(r/min)	30.3	32.1	33.2	37.7	37.7	37.7	37.7	38.8	40	6.3
Motor Power Model	YR315M₁-8	YR315M₂-8	YR355m3-8	YR355m3-8	YR355L₁-8	YR355L₂-8	YR450-8	YR500-8	YR560-8	YR800-8/1180
Power(kw)	110	132	185	185	220	250	315	450	560	800
Auxiliary Transfer Power(kw)				7.5	7.5	7.5	11	15	15	18.5
Revolution(r/min)	730	730	740	740	740	740	740	740	740	740
Voltage(v)	380	380	380	380	380
