Mineral Processing Shaking table For Gold Ore Concentration

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LY-0.5sq

Packing: 15-20DAYS

Application: Ore

Brand Name: RP

Power: 1.1 (kw)

Motor Model: Y90L-4

Feeding Volume (t/h): Ore Slime: 0.05-0.1

Mineral dressing area: 16-22 (mm)

Dimensions: 153*60*67 (cm)

Means of Transport: Ocean,Land

Delivery Date: Normal Paking

Type: Others

Bed Surface: 110*60*43 (mm)

Speed: 1400 (r/min)

Max Feeding Size: <0.074 mm

Driving Type: Eccentric link structure

Bed Surface Slope: 0-10

Shaking table
mining blender
High recovery ratio
High concentration ratio
Deck constructed of fiber glass
Long working life

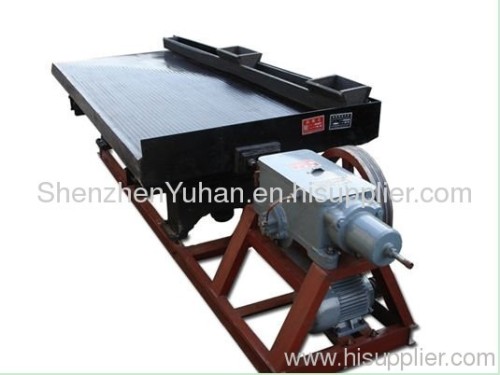

Mineral Processing Shaking Table

1. A Brief Introduction of Shaking Table

Shaking table is effective gravity concentration equipment. Although processing capacity is low, the separating effective size can achieve 0.037mm. The bed zoning is very obvious and easy to operate, so it can produce high-grade ore concentrate, sub-concentrate, and tailings.

2. Features of Shaking Table

1. Great ratio of high-grade ore, efficient separating, easy operation, easy to adjust the stroke.

2. Strong wear resistance of the working surface.

3. Anti-chemical corrosion, acid and alkali.

4. Strong resistance to harsh environment.

3. Technical parameters of Shaking Table

Name		bed surface for coarse sand	bed surface for fine sand	bed surface for slurry
Bed dimension	Length (mm)	4450	4450	4450
	transmission end width (mm)	1855	1855	1855
	concentrate ore width (mm)	1546	1546	1546
Max Feeding Size (mm)		2	0.5	0.15
Feeding volume (t/h)		30-60	10-20	15-25
Feeding density (%)		25-30	20-25	15-25
stroke (mm)		16-22	11-16	8-16
Frequency ( t/s)		45-48	48-53	50-57
Cross Slope of Surface		2.5°-4.5°	1.5°-3.5°	1°-2°
mineral dressing area (m2)		7.6	7.6	7.6
Shape of bed surface		Rectangle	indention	Triangle
Motor Power (KW)		1.1	1.1	1.1
Driving type		Eccentric link structure
