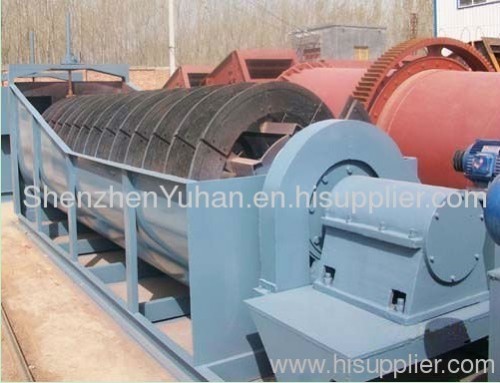

Spiral Classifier for Mineral Processing/Mineral Screw Classifier

Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FLG500

Production Capacity: 200 sets/month

Delivery Date: 20 days

Type: Separator

Speed of Spiral: 8-15.5 (r/min)

Spiral diameter: 500 (mm)

Slope: 12-18 (°)

Weight: 1.9 (t) .

Means of Transport: Ocean,Land

Packing: normal packing

Application: Coal

Brand Name: RP

Sand Return: 6-11 (t/h)

Overflow: 32 (t/h)

Power: 3 (KW)

Features of Spiral Classifier:
1.Sample structure
2.Reliable Running
3.Easy Operation
4.Best Choose

Spiral Classifier

Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process. This machine has features of simple structure, reliable and convenient operation, etc.

Brief introduction

Working Principle

Spiral classifier is a kind of classifying machine that classifies big and small mineral granules. It works according to the fact that different granules (with various sizes and weight) sink at different speeds in liquids. It can filter powders grinded from mill and rotate the coarse materials to the feeding hole of the mill and discharge filtered fine materials though the overflow pipe. The chassis of this spiral classifier is made of channel steel and the main machine is welded by armor plate. The water inlet and the shaft head come with cast iron sleeves, which are robust and abrasion resistant. Both manual-operated and automatic hoisting devices are available.

Features:
1.  Simple structure;
2.  Reliable working condition;
3.  Convenient operation;
4.  Allows the fine ore to flow in the water.

Technical parameters

Model	Spiral diameter (mm)	Speed of Spiral (r/min)	Capacity		Slope (°)	Power (KW)	Weight (t)
Model	Spiral diameter (mm)	Speed of Spiral (r/min)	Sand Return (t/h)	Overflow (t/h)	Slope (°)	Power (KW)	Weight (t)
FLG500	500	8-15.5	6-11	32	12-18	3	1.9
FLG750	750	4.5-10	11-24	65	12-18	3	2.7
FLG1000	1000	1.6-7.4	25-45	110	12-18	5.5	4.1
FLG1200	1200	5-7	50-80	155	12-18	5.5	7.5
FLG1500	1500	2.5-6	70-115	235	12-18	7.5	10.5
FLG1800	1800	2.5-6	100-190	310	12-18	11	17.1
FLG2000	2000	2.5-6	160-230	400	12-18	15	19.3
