vibrating feeder/ vibrating screen/vibrating machine,industry vibration screening machine 2YZS1548 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

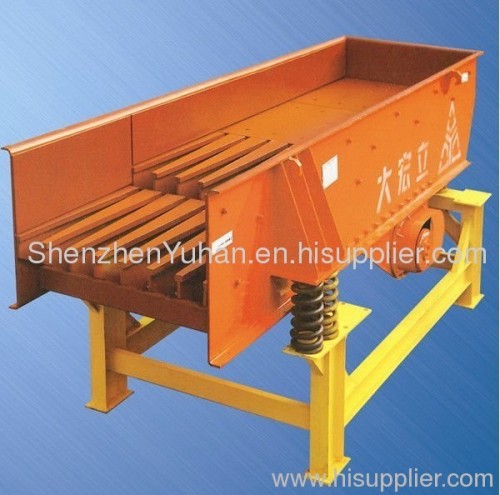

vibrating feeder/ vibrating screen/vibrating machine,industry vibration screening machine

Payment Terms:	T/T,L/C;O/A
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2YZS1548

Production Capacity: 200 sets/month

Delivery Date: 20 days

Type: Feeder Machine

Layer: 1

Meshsize: 3-100 (mm)

Capacity: 20-150 (t/h)

Sieve size: 1180*3550

Means of Transport: Ocean,Land,Air,

Packing: normal packing

Application: Coal

Brand Name: RP

Sievearea: 4.3 (m2)

Max feed size: 300 (mm)

Power: 5.5 (kw)

ore vibrating screen:
1. High sieving precision
2. Material:carbon steel
3. Easy operation
4.CE: ISO9001:2008

vibrating feeder/ vibrating screen/vibrating machine,industry vibration screening machine,silica sand vibrating screen machine

Circular Vibrating Screen

Circular Vibrating Screen earns this name by reason of its approximately circular movement. It is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, clear screening for different specifications.

Circular Vibrating Screen Features:

1 It uses eccentric block to produce strong exciting force.

2 Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.

3 It adopts tire coupling with capability of flexible connection and stable operation.

4 It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span,

low consumption, little noise.

Circular Vibrating Screen Working Principle

The motor drives the vibrator via v-belt, which makes the screen do a cyclical reciprocating in the directin of vibrator. The materials are sieved by making round movement in the screen.

Technical parameters of Vibrating Screen,Rounding Vibrating Screen:

Model	Screen spec(mm)	Layers	Screen mesh size (mm)	Capacity (t/h)	Power (kw)	Vibrating Frequency (t/min)	Double amplitude	Feed size (mm)
2YZS 1237	1200x3700	2	4-50	10-80	11	870	4-8	≤200
3YZS1237	1200x3700	3	4-50	10-80	11	870	4-8	≤200
2YZS1548	4800X1500	2	3-100	30-275	15	830	5-9	≤400
3YZS1548	4800X1500	3	3-100	30-275	15	830	5-9	≤400
4YZS1548	4800X1500	4	3-100	30-275	18.5	830	5-9	≤400
2YZS1848	4800X1800	2	3-100	56-330	18.5	830	5-9	≤400
3YZS1848	4800X1800	3	3-100	56-330	18.5	830	5-9	≤400
4YZS1848	4800X1800	4	3-100	56-330	18.5	830	5-9	≤400
2YZS1860	6000X1800	2	3-100	65-586	18.5	830	5-9	≤400
3YZS1860	6000X1800	3	3-100	65-586	18.5-22	830	5-9	≤400
4YZS1860	6000X1800	4	3-100	65-586	18.5-22	830	5-9	≤400
2YZS2160	6000X2100	2	3-100	81-720	22	730	5-9	≤400
3YZS2160	6000X2100	3	3-100	81-720	22-30	730	5-9	≤400
4YZS2160	6000X2100	4	3-100	81-720	30	730	5-9	≤400
2YZS2470	7000X2400	2	3-100	100-810	30-37	730	5-9	≤400
3YZS2470	7000X2400	3	3-100	100-810	30-37	730	5-9	≤400

We(Shenzhen Yuhan Electro-Mechanic Co.,Ltd)are pleased to introduce you ourselves as one of the leading and well established/Manufacturing and Supplying of High Quality Products as below main items:

Stone production line:

Including:

Jaw crusher

Impact crusher

Cone crusher

Hammer crusher

Vibrating screen etc

Sand making production line:

Including:

Jaw crusher

Sand making machine (VSI crusher)

Ball mill

Cone crusher

Hammer crusher

Sand washing machine

Vibrating screen etc

We have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
