RP Brand Large Capacity Inclined belt Conveyor 400 manufacturer from China Shenzhen Yuhan electro-mechanics Co., Ltd

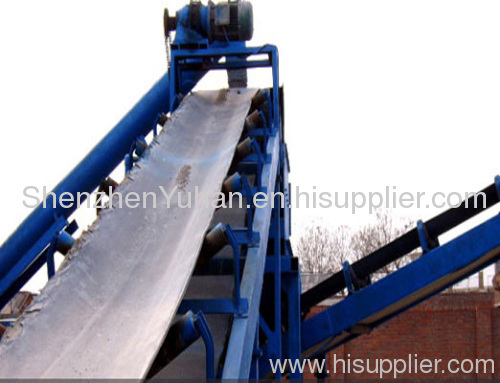

RP Brand Large Capacity Inclined belt Conveyor

Price:	1000.0~20000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 400

Production Capacity: 200 sets/month

Delivery Date: 20 days

Type: Separator

Length: ≤12 m

Conveying Speed: 1-2.0 (m/s)

Means of Transport: Ocean,Land

Packing: normal packing

Application: Coal

Brand Name: RP

Power: 2.2 (KW)

Capacity: 30-60 (t/h)

1.Speed 0-30m/min .
2.Simple Structure.
3.Smooth Operation.
4.High Transport Capacity .
5.High Transporting Efficiency.

Belt conveyor works according to friction transmitting principle, it is widely used to convey bulk materials in mine, metallurgy, coal, traffic, water and electricity, etc. It has the features of large conveying capacity, simple structure, easy maintenance, low consumption.

Features:
1. Large conveying capacity.
2. Noise Reduction.
3. Simple structure.
4. Easy maintenance.
5. Energy-Saving and Low Cost.
(The following points should be pay attention to: The Belt Conveyors can be operated in the circumstance temperature range from

-20℃ to +40℃. The temperature of transferred material by this Belt Conveyor should be lower than 50℃.)

Technical parameters

Belt width (mm)	Length (m) / Power (KW)			Conveying Speed (m/s)	Capacity (t/h)
400	≤12/2.2	12-20/2.2-4	20-25/3.5-7.5	1-2.0	30-60
500	≤12/3	12-20/3-5.5	20-30/5.5-7.5	1-2.0	40-80
650	≤12/4	12-20/4-5.5	20-30/5.5-11	1-2.0	80-120
800	≤10/4	10-15/4-5.5	15-30/5.5-15	1-2.0	120-200
1000	≤10/5.5	10-20/5.5-11	20-40/11-22	1-2.0	200-320
1200	≤10/7.5	10-20/7.7-15	20-40/15-30	1-2.0	300-480

Belt Width(mm)	Belt Length (m) / Power (kW)			Belt Speed (m/s)	Capacity (t/h)
500	≤12/3	12-20/4-5.5	20-30/5.5-7.5	1.3-1.6	45-90
650	≤12/4	12-20/5.5	20-30/7.5-11	1.3-1.6	70-120
800	≤10/4	10-15/5.5	15-25/7.5-15	1.3-1.6	120-180
1000	≤10/5.5	10-20/7.5-11	20-25/11-22	1.3-2.0	160-250
1200	≤10/7.5	10-20/11	20-25/15-30	1.3-2.0	200-400
